- C9300X-24/48HX-M: 24x and 48x 10G mGig, 90 W PoE
- C9300X-48HXN-M: 40x 5G, 8x 10G mGig, 90 W PoE

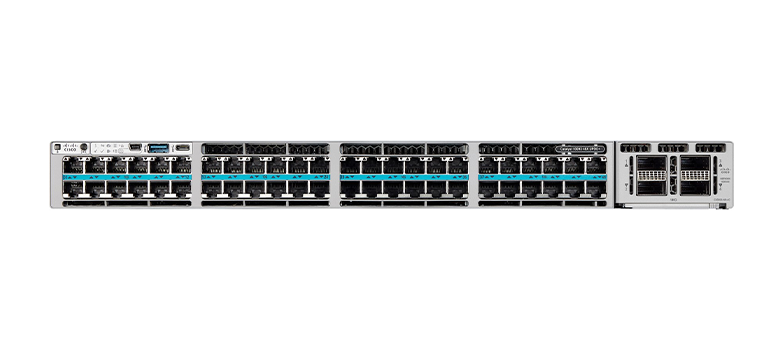

- C9300X-48TX-M: 48x 10G mGig, data
- 100G/40G/25G/10G/1G fiber modular uplink options
Models and features

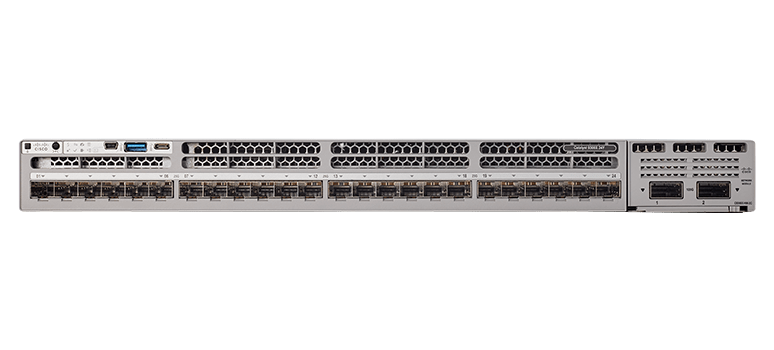

- C9300X-24Y-M: 24x 25G SFP28
- C9300X-12Y-M: 12x 25G SFP28
- 100G/40G/25G/10G/1G fiber modular uplink options
- C9300-24/48U-M: 24x and 48x 1G mGig, 60 W PoE
- C9300-24UX-M: 24x 10G mGig, 60 W PoE
- C9300X-48UXM-M: 36x 2.5G, 12x 10G mGig, 60 W PoE
- C9300-48UN-M: 48x 5G mGig, 60 W PoE
- 40G/25G/10G/1G fiber modular uplink options
- ENERGY STAR®® certified: C9300-48UXM-M
- C9300-24/48P-M: 24x and 48x 1G copper, 30 W PoE
- C9300-24/48T-M: 24x and 48x 1G copper, data
- C9300-24/48S-M: 24x and 48x 1G SFP
- 40G/25G/10G/1G fiber modular uplink options
- ENERGY STAR®® certified: C9300-48P-M
- C9300L-24/48UXG-4X-M: 16/36x 1G, 8/12x 10G mGig, 60 W PoE
- C9300L-24/48P-4X-M, C9300L-48PF-4X-M: 24x and 48x 1G, 30 W PoE
- C9300L-24/48T-4X-M: 24x and 48x 1G, data
- 10G fiber fixed uplinks
- Reliable platform with 24/7 Meraki support
- Front-panel LED functions such as active/standby and StackPower states
- 1RU rack-mountable
- High-availability and fault-tolerant switch stacking
- View detailed datasheets:
Catalyst 9300-M datasheet
Catalyst 9300X-M datasheet
Catalyst 9300L-M datasheet
- Configure thousands of ports from a single dashboard
- Easy to review, schedule, and stage firmware updates
- Rich remote troubleshooting capabilities such as cable testing and remote package capture
- Instant visibility with dynamic topology view
- Over 1,500 deep-packet application visibility and Encrypted Traffic Analytics (ETA)
